UNIVERSAL AIR CONDITIONING KIT FOR CARS, CLASSIC CARS, HOT RODS, HEAT AND COOL 404-000 RECTANGULAR LOUVERS WITH FLEX DUCT SANDEN TYPE COMPRESSOR

Features:

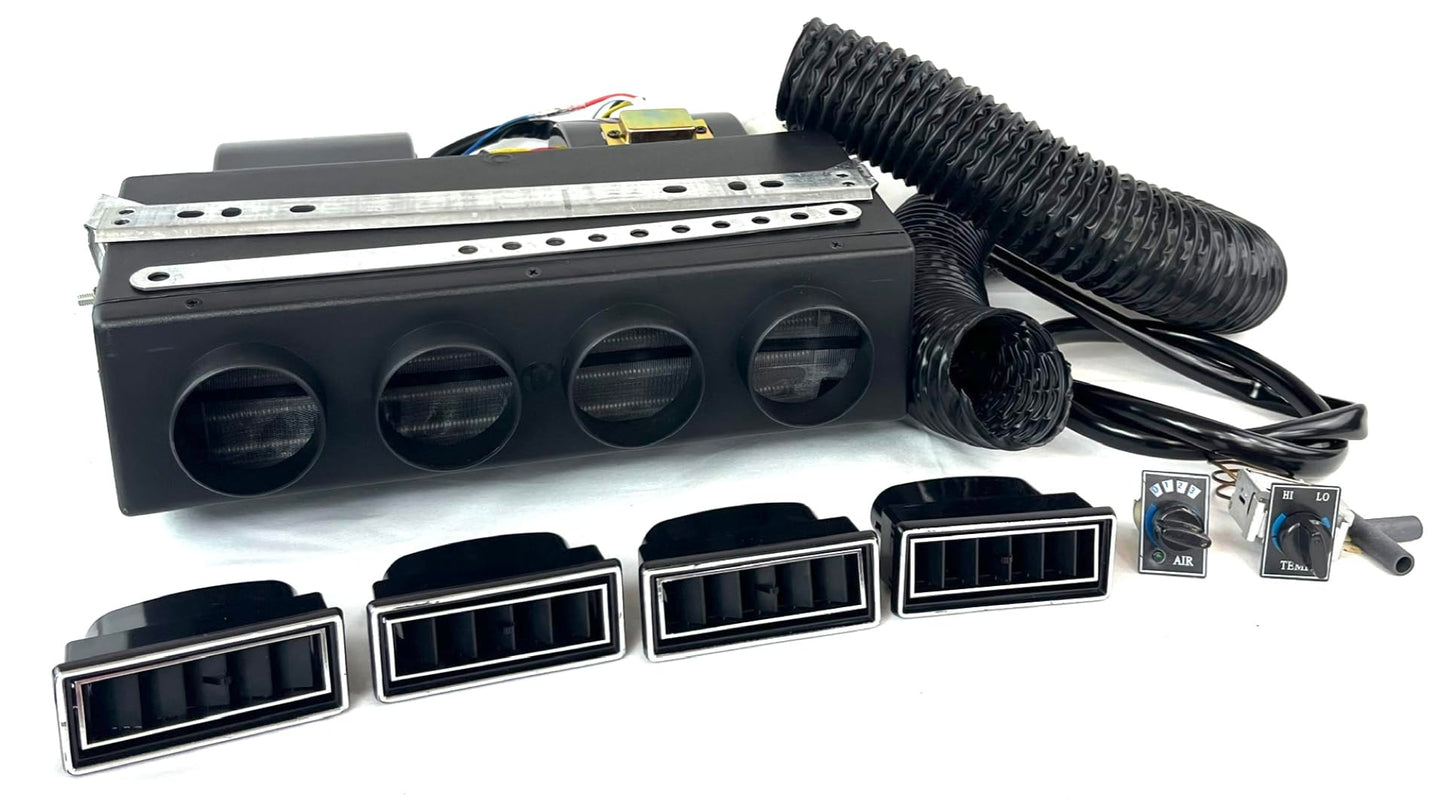

• Evaporator Model: E- 404-000 DBSL H/C. (4 Black Star Louvers) Universal Evaporator UNDER-DASH Heat & Cool 32 pass 4way all Aluminum coil Expansion valve 1.5 Ton Thermostat and rotative 3-speed blower switch Mounting bracket drain hose and T included 12,700 BTU capacity 359 CFM DIMENSIONS: L15¾" X D12½" X H6" 10' FLEX DUCT 2½" DIAMETER 4 BLACK STAR LOUVERS

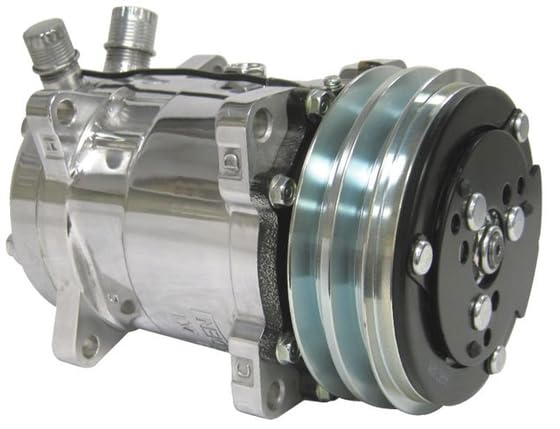

• Compressor Model: C5H142A12V SD508 5H14 Sanden Style 2A Groove Pulley 12v coil also available 8PK Pulley

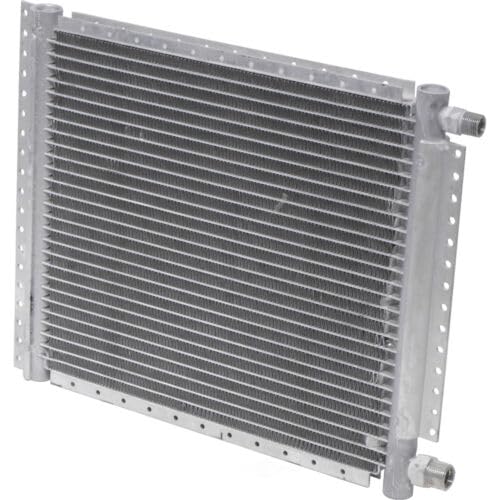

• Condenser Model: CPF142018 PARALLEL FLOW (micro-tube technology) 14"H X 20"L .70"(18mm)W 4 Rails Aluminum #8 O-ring IN #6 O-ring OUT

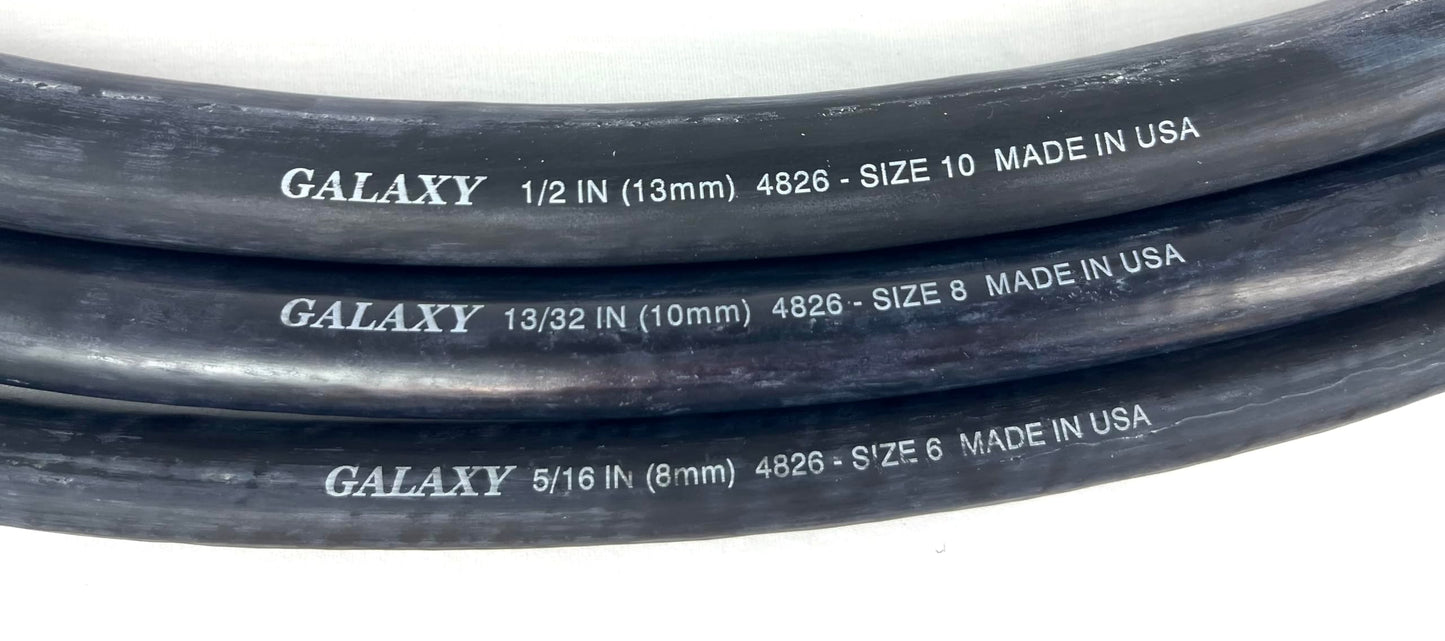

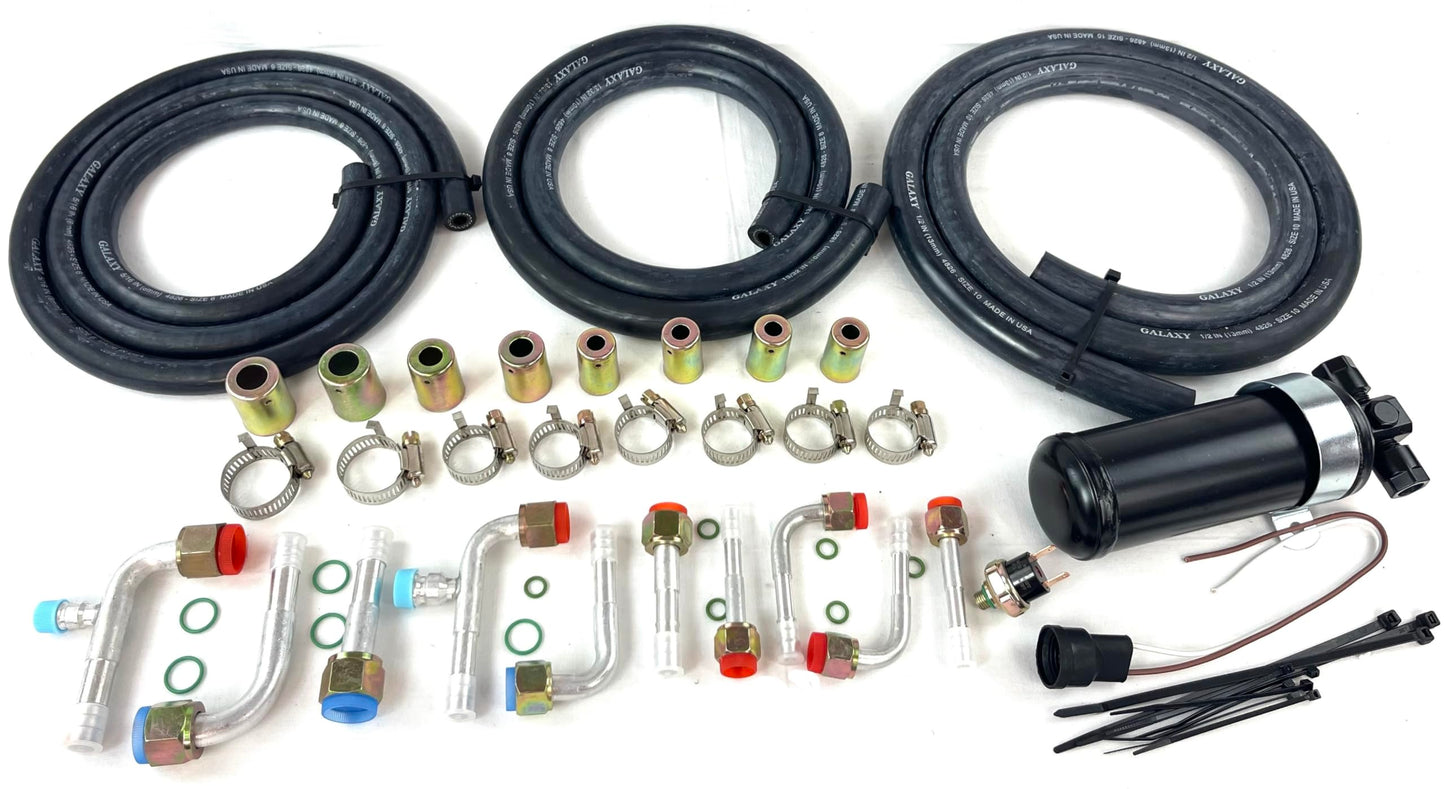

• Hoses Set Model: H6516,H81332, H1012 A/C HOSE #6 5/16 = 6'feet #8 13/32 = 4'feet #10 1/2 = 5' feet (NOTE: if you need extra hose JUST LET US KNOW, extra charges maybe apply).
• Fitting Set Model: FTSET404 1- N° 10 90° O-ring Fitting w/R134a Serv Port 1- N° 8 90° O-ring Fitting w/R134a Serv Port 1- N° 10 Straight O-ring Fitting 1- N° 10 90° O-ring Fitting 2- N° 6 90° O-ring Fitting 1- N° 8 90° O-ring Fitting 2- N° 6 Straight O-ring Fitting Set include metal FERRULES and CLAMPS If you decided use a/c clamps you don't need special crimper tool (YES... We include both systems) O-ring set is included

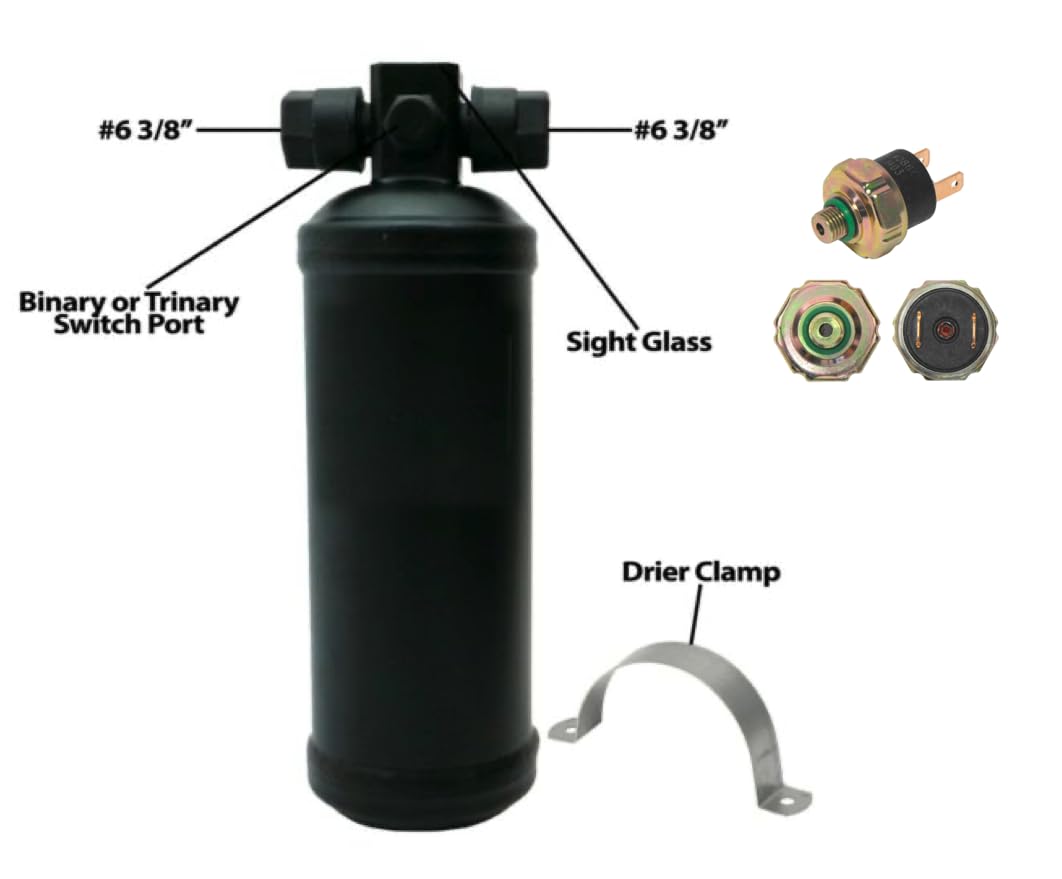

• Filter Drier Model: FD100A ALUMINUM Model: FD100B BLACK 2.5"Diameter 7.5"Hight Sight Glass #6 3/8 x 3/8 O-ring connections both sides (HI/LOW BINARY PRESSURE SWITCH AND HARNESS CONNECTOR INCLUDED) (NOTE: Aluminum or Black) if you have a preference let us know leaving a message

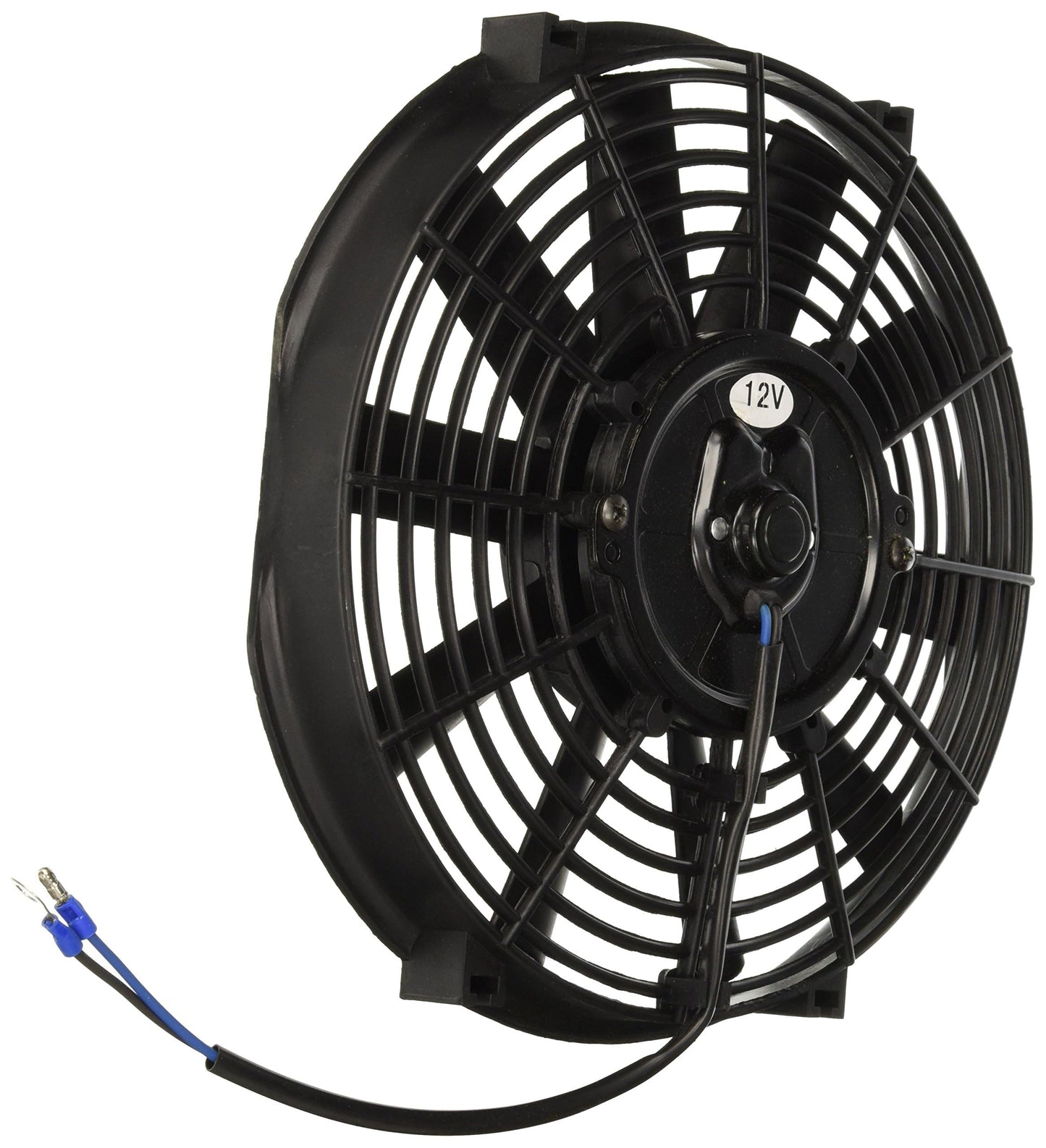

• Condenser Fan Model: CF1212 12" Diameter 12 Volts 80W 6 AMP Reversible Puller or Pusher 4 Mounting Brackets included
• 1 YEAR WARRANTY FULL CUSTOMER SERVICE

model number: ‎ECC KIT 404-0DBSL H/C

Part Number: BEU-404-000 12V H/C

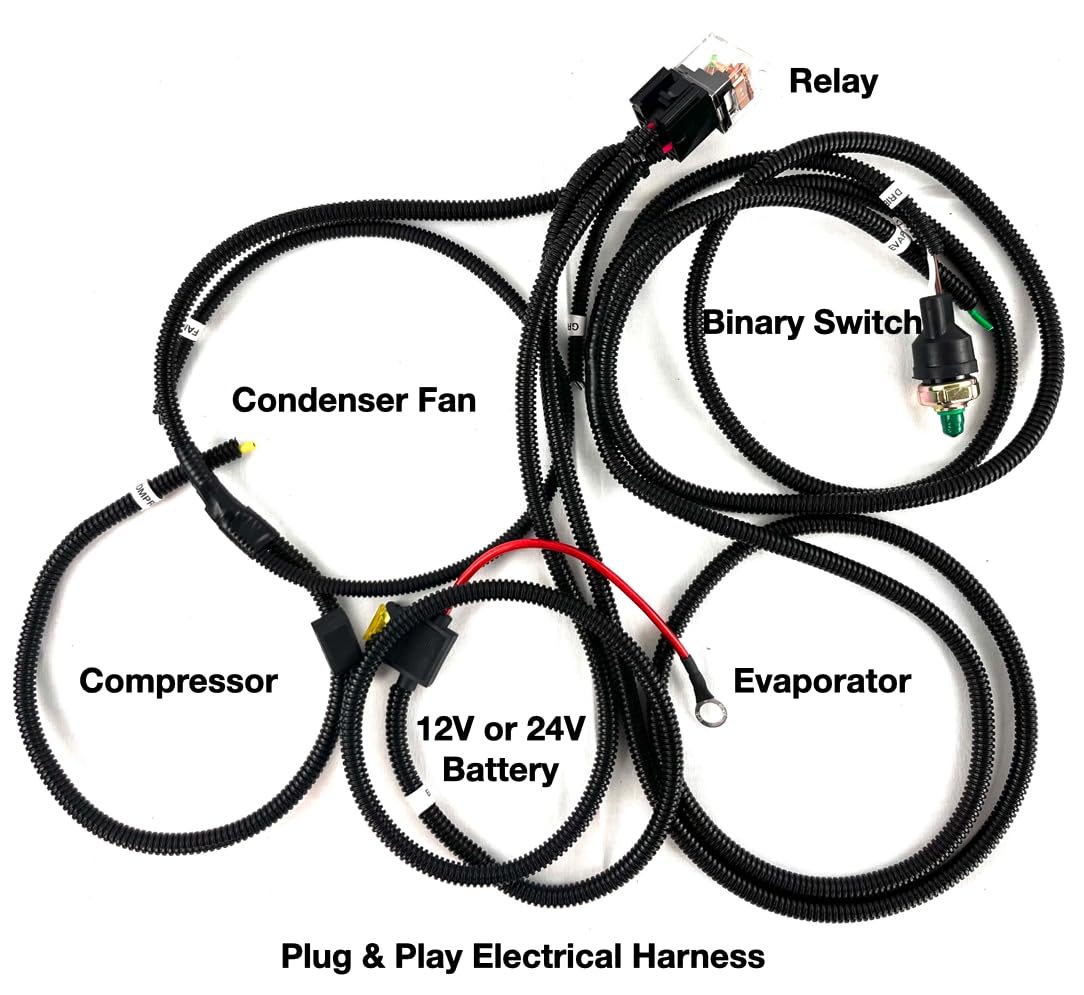

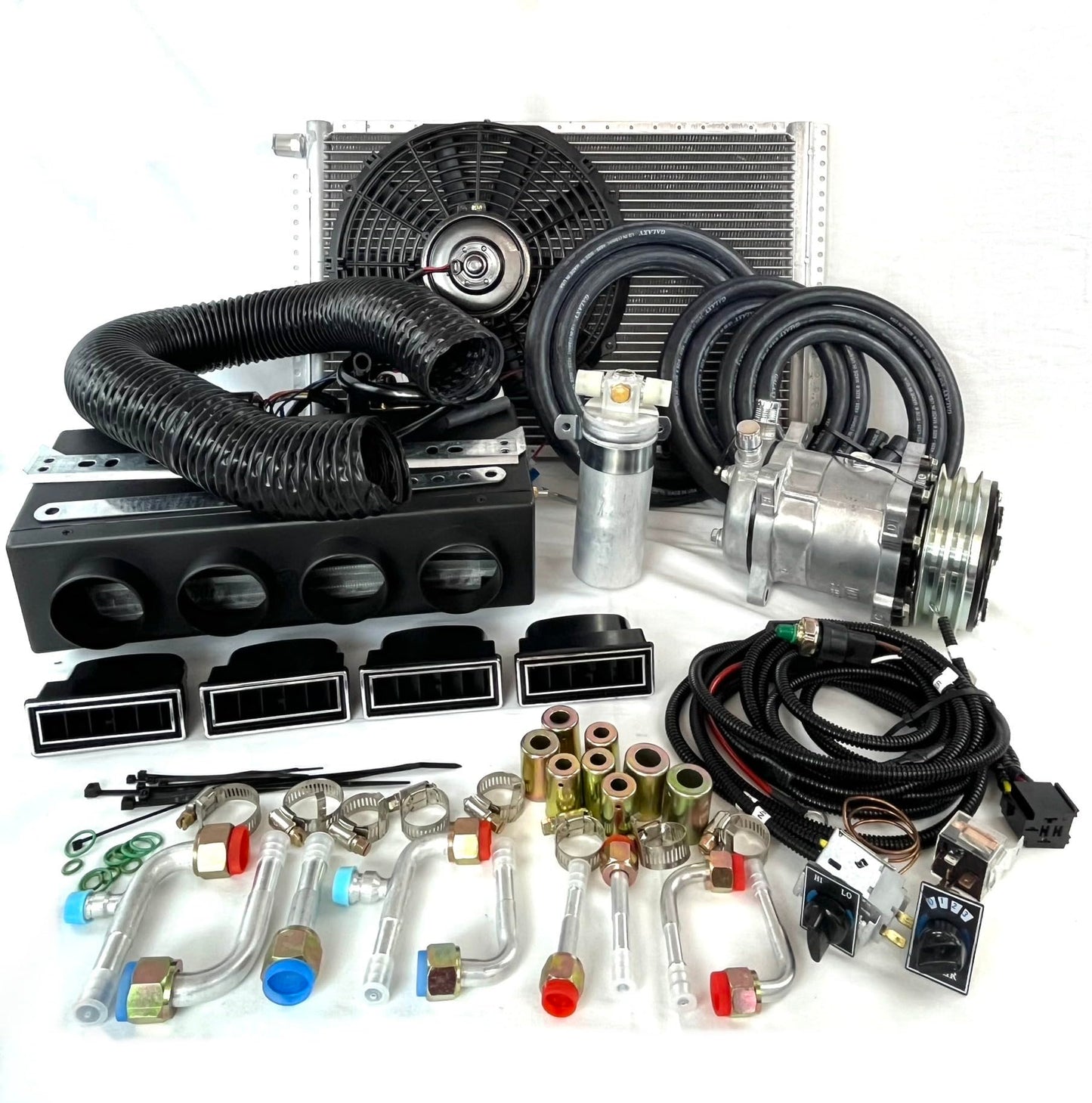

Details: Universal A/C Kit Underdash Ideal for classic cars, trucks, tractors and more Heat and Cool Under-Dash Evaporator, Sanden type Compressor 2A Groove pulley 12V Coil, 14x20 Parallel Flow Condenser, Hose Set, Fitting Set, Electrical Harness. NOTE: Gas R-134a, compressor mounting bracket, heater hoses and control valve is not included, we sold separately We can help you to find any extra component for special applications, bracket, belt, fittings, fitting adapters, connectors, etc

Package Dimensions: 204.0 x 21.0 x 16.0 inches
